Home > products > Waterproof LED Profile > Square Aluminum LED Profile Channel Recessed Floor Wall Ceiling Mounting

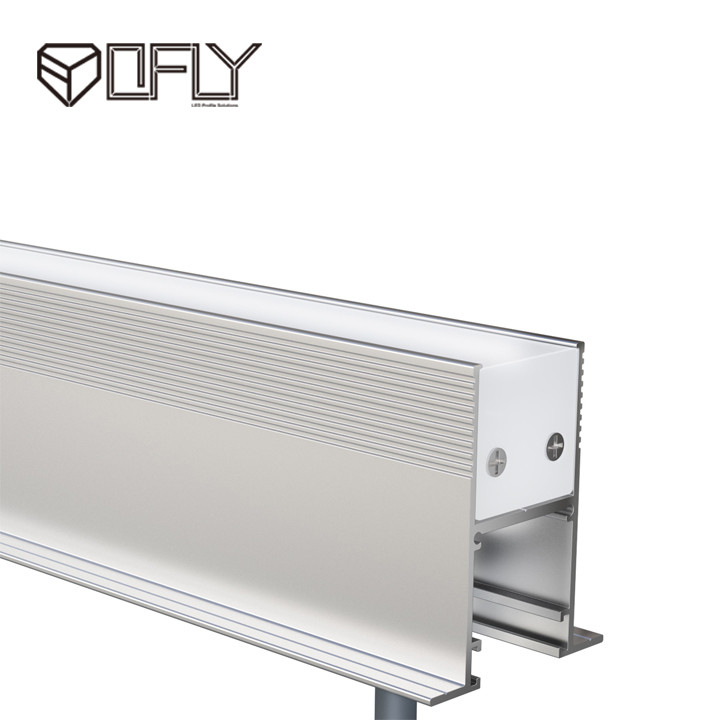

Square Aluminum LED Profile Channel Recessed Floor Wall Ceiling Mounting

Product Details

Place of Origin: Shenzhen, China

Brand Name: OFLY

Certification: CE, ROHS

Model Number: YD-2203

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: Negotiable

Packaging Details: 8mm Thick Carton Packaging

Delivery Time: 5-7 Days

Payment Terms: T/T

Supply Ability: 2000000 Meters\Year

Get Best Price
Highlight:

Recessed Square Aluminum LED Profile

,

6063 T5 Aluminum LED Profile

,

4m led aluminum channel

Material:
6063 T5 Aluminium Alloy
Item No.:
YD-2203
Length:
1m,2m,3m,4m
Cover:
Milky/Clear/Frosted/Opal
Size:
50*43mm
Certification:
CE, ROHS
Material:
6063 T5 Aluminium Alloy
Item No.:
YD-2203
Length:
1m,2m,3m,4m
Cover:
Milky/Clear/Frosted/Opal
Size:
50*43mm
Certification:
CE, ROHS
Square Aluminum LED Profile Channel Recessed Floor Wall Ceiling Mounting

50*43mm Square Recessed Floor Wall Ceiling Mounting Aluminum Channel LED Profile

Waterproof LED Profile, LED Aluminum Profile



Ofly LED is a supplier of best-in-class LED lighting products and related value-add services based in Shenzhen, China.We supply led aluminum profiles ex-stock.We are adding new products to our catalog all the time.

1. FEATURES:

  • Built out of polycarbonate and aluminium, this extruded aluminium profile can provide light diffusion for LED strip lights measuring 10-12mm in width.
  • High resistance to rust and corrosion.
  • High weather resistance for at least Years to come.
  • Good resistance to wear and tear of any kind.

2. SPECIFICATION:

Item NO.  YD-2203
Size 50*43mm
Length 1m, 2m, 3m, 4m
Customized Length Available
PCB Width Inside ≤12.5mm
PC Cover Milky/Clear/Opal/Semi-clear
Finished Anodized
Material 6063 T5 aluminum alloy
Plastic Profile 1 piece
Silicone Pad 2 pieces
End Caps 2 End caps
Aluminum End Caps 2 End caps
Waterproof Connector 2 pieces
Wired Waterproof Connector 2 pieces
Flat Head Screw 8 pieces
Installation Recessed
Lead Time 5-7 days
Package 8mm Thick Carton Packaging



3. APPLICATIONS:



* Our Waterproof LED Profile is ideal for floor lighting, driveway lighting, walkway lighting, and a variety of other applications requiring heavy-duty, robust light fixtures.
A deeper version of our popular surface LED profile, providing more distance between the LED and diffuser thus reducing spotting and producing a smoother light appearance. This profile is best used by recessing into a 50mm deep groove to allow it to sit flush with the mounting surface.




Square Aluminum LED Profile Channel Recessed Floor Wall Ceiling Mounting 0

Hot Sales



Square Aluminum LED Profile Channel Recessed Floor Wall Ceiling Mounting 1

FAQ


Q1: Can I join them together to make one continuous length?

A1: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line).




Q2: What is the material of diffuser ?


A2: PC or PMMA.





Q3: May I have a look at your catalog?


A3: Sure. We have the aluminum tile trim profile catalog here. Or maybe you tell us where you use it, then we will recommend the related products to save time.




Q4: Can we have the profile in other color ?


A4: Yes, power coating and anodizing available.




Q5: How do you pack the goods?


A5: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.



Welcome ODM Customized LED Aluminum Profile
