Product Details
Place of Origin: Shenzhen, China
Brand Name: OFLY
Certification: CE, ROHS
Model Number: YD-2201
Payment & Shipping Terms
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: 8mm Thick Carton Packaging
Delivery Time: 5-7 Days
Payment Terms: T/T
Supply Ability: 2000000 Meters\Year
Material: |
6063 T5 Aluminium Alloy |
Item No.: |
YD-2201 |
Length: |
1m,2m,3m,4m |
Cover: |
Milky/Clear/Frosted/Opal |
Size: |
48*60mm |
Certification: |
CE, ROHS |
Material: |
6063 T5 Aluminium Alloy |
Item No.: |
YD-2201 |
Length: |
1m,2m,3m,4m |
Cover: |
Milky/Clear/Frosted/Opal |
Size: |
48*60mm |
Certification: |
CE, ROHS |

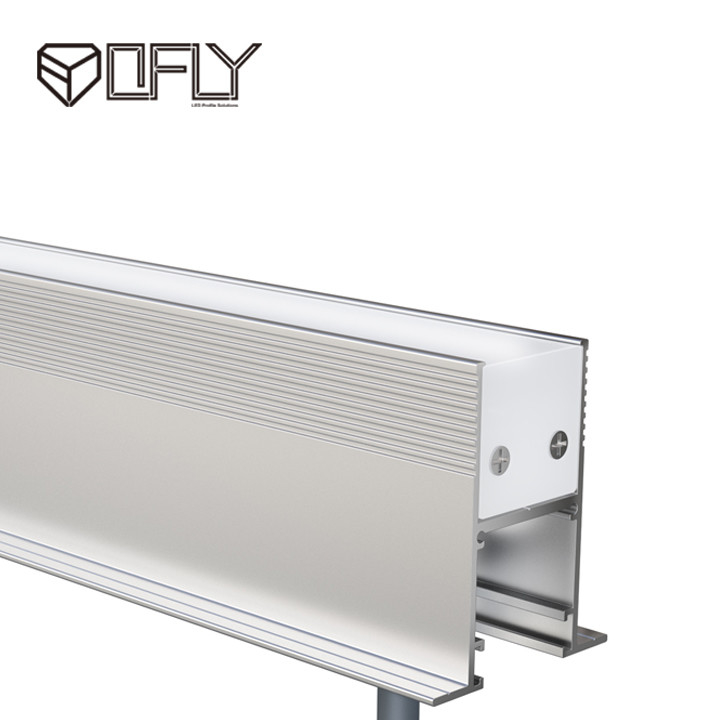

Linear Waterproof LED Aluminum Profile 48*60mm Recessed LED Profile
Waterproof LED Profile, LED Aluminum Profile
1. FEATURES:
* Standard 6063-T5aluminum profile
* Installation: recessed mounted
* Supplied with Plastic Profile, Silicone Pads, End Caps, Aluminum End Caps, Waterproof Connectors, Wired Waterproof Connectors and Flat Head Screws.
2. SPECIFICATION:
| Item NO. | YD-2201 |
| Size | 48*60mm |
| Length | 1m, 2m, 3m, 4m |
| Customized Length | Available |
| PCB Width Inside | ≤12.5mm |
| PC Cover | Milky/Clear/Opal/Semi-clear |
| Finished | Anodized |
| Material | 6063 T5 aluminum alloy |
| Plastic Profile | 1 piece |
| Silicone Pad | 2 pieces |
| End Caps | 2 End caps |
| Aluminum End Caps | 2 End caps |
| Waterproof Connector | 2 pieces |
| Wired Waterproof Connector | 2 pieces |
| Flat Head Screw | 8 pieces |
| Installation | Recessed |
| Lead Time | 5-7 days |
| Package | 8mm Thick Carton Packaging |
3. APPLICATIONS:
* Our Waterproof LED Profile is ideal for floor lighting, driveway lighting, walkway lighting, and a variety of other applications requiring heavy-duty, robust light fixtures.
* Make your own LED light fixture with our high-quality LED flexible strips.
* The aluminum channel protects the LED Strip while also acting as a heat sink, extending the LED's lifespan.
* These LED extrusions are in stock at our warehouse.
Hot Sales
FAQ
Q1: Can I join them together to make one continuous length?
A1: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line).
Q2: What is the material of diffuser ?
A2: PC or PMMA.
Q3: Can you company help to assembly the led strip and driver ?
A3: Yes, we provide one-stop assembly service.
Q4: Can we have the profile in other color ?
A4: Yes, power coating and anodizing available.
Q5: How do you pack the goods?
A5: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.
Welcome ODM Customized LED Aluminum Profile
