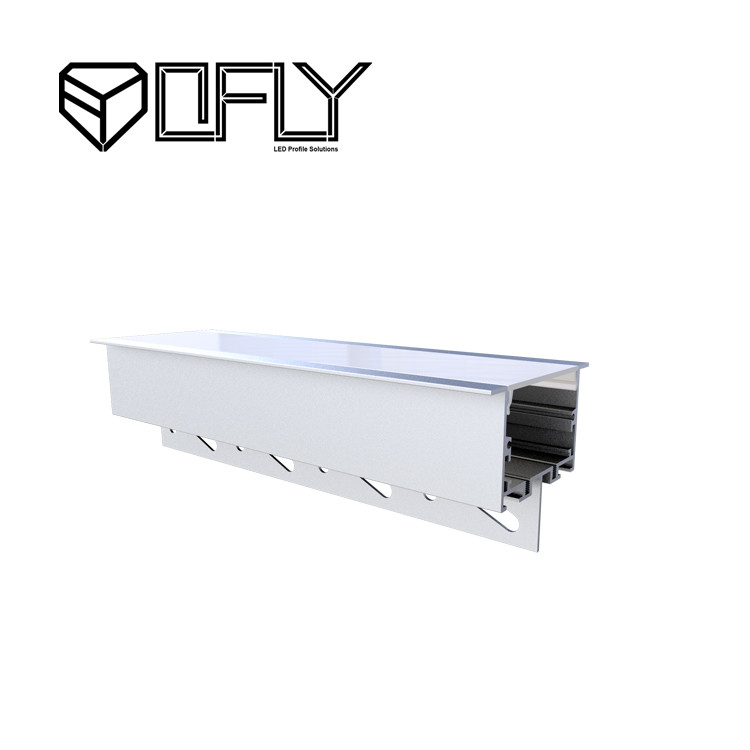

Opal Recessed Led Strip Lighting Channel 6063 T5 Aluminium Material 65mm X 55mm

Product Details

Place of Origin: Shenzhen, China

Brand Name: OFLY

Certification: CE, ROHS

Model Number: YD-6535

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: Negotiable

Packaging Details: 8mm Thick Carton Packaging

Delivery Time: 5-7 Days

Payment Terms: T/T

Supply Ability: 2000000 Meters\Year

Get Best Price
Highlight:

Opal Recessed Led Strip Lighting Channel

,

55mm Recessed Led Strip Lighting Channel

,

65mm Recessed Led Strip Profile

Material:
6063 T5 Aluminium Alloy
Item No.:
YD-6535
Length:
1m,2m,3m,4m
Cover:
Milky/Clear/Frosted/Opal
Size:
65*55mm
Certification:
CE, ROHS
Material:
6063 T5 Aluminium Alloy
Item No.:
YD-6535
Length:
1m,2m,3m,4m
Cover:
Milky/Clear/Frosted/Opal
Size:
65*55mm
Certification:
CE, ROHS
Opal Recessed Led Strip Lighting Channel 6063 T5 Aluminium Material 65mm X 55mm

High Class Aluminum LED Profile Recessed Profile For Ceiling 65*55



Recessed LED Profile, LED Aluminum Profile



1. FEATURES AND APPLICATIONS:

Led Aluminum Profile is used for Led Strip lights installation. The Led Aluminum Profile anodized finish provides maximum protection against the elements, preventing rust and corrosion, and making them perfectly suitable for rough indoor or outdoor use. At the same time, Diffusers are available to maximize protection of the led strip and to control the diffusion of light from the strip. End Caps are also available to fully enclose the profile and also cleanly direct the wiring to the strip.



2. SPECIFICATION:

Item NO. YD-6535
Size 65mm*55mm
Length 1m, 2m, 3m, 4m
Customized Length Available
PCB Width Inside ≤12.5mm
PC Cover Milky/Clear/Opal/Semi-clear
Finished Anodized
Material 6063 T5 aluminum alloy
End Caps 2 End caps, one with wire hole, one without
Brackets 2 pieces
Installation Recessed
Lead Time 5-7 days
Package 8mm Thick Carton Packaging



Opal Recessed Led Strip Lighting Channel 6063 T5 Aluminium Material 65mm X 55mm 0


Hot Sales
Opal Recessed Led Strip Lighting Channel 6063 T5 Aluminium Material 65mm X 55mm 1



FAQ


Q1: What is the max length I can get?

A1: Max 2 meters by express or 4 meters by sea freight.


Q2: Can I have profile in different length ?

A2: Yes, we have in house cutting facilities to prepare the length in any quantity.


Q3: Can I customized colors?

A3: Color can be customized.


Q4: Can I join them together to make one continuous length?

A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)

Q5: After the payment, how long can I get the goods?

A5: After we receive the payment, we will need 3-10 days to prepare, then we will send the goods to shipping agency. Lead time depends on the shipping method, air freight will take 5-8 days, sea freight will take 25-30 days.


Welcome ODM Customized LED Aluminum Profile
