Product Details
Place of Origin: Shenzhen, China
Brand Name: OFLY
Certification: CE, ROHS
Model Number: YD-3511
Payment & Shipping Terms
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: 8mm Thick Carton Packaging
Delivery Time: 5-7 Days
Payment Terms: T/T
Supply Ability: 2000000 Meters\Year
Material: |
6063 T5 Aluminium Alloy |
Item No.: |
YD-3511 |
Length: |
1m,2m,3m,4m |
Cover: |
Milky/Clear/Frosted/Opal |
Size: |
35*11mm |
Certification: |
CE, ROHS |
Material: |
6063 T5 Aluminium Alloy |
Item No.: |
YD-3511 |
Length: |
1m,2m,3m,4m |
Cover: |
Milky/Clear/Frosted/Opal |
Size: |
35*11mm |
Certification: |
CE, ROHS |

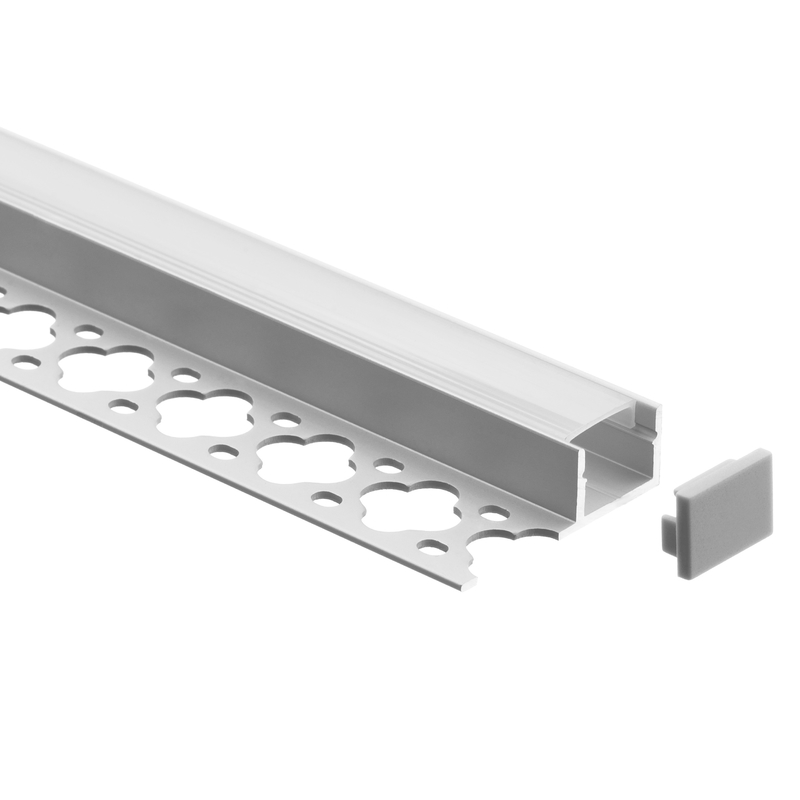

35*11mm Square Plaster LED Profile PC Cover Strip Channel Drywall Gypsum Anodized
Plaster LED Profile, Dry Wall LED Profile
1. FEATURES AND APPLICATIONS:
* Widely used for ceilings, walls, etc.
* Suitable for holding and protecting our LED light bars.
* They can be flush mounted into coves or furniture and prevent unwanted secondary refraction from reflective surfaces.
* Acts as a heat sink for them, which in turn increases the life of the LEDs, as well as slowing down any brightness drop over time.
2. SPECIFICATION:
Item NO. | YD-3511 |
Size | 35*11mm |
Length | 1m, 2m, 3m, 4m |
Customized Length | Available |
PCB Width Inside | ≤12.5mm |
PC Cover | Milky/Clear/Opal/Semi-clear |
Finished | Anodized |
Material | 6063 T5 aluminum alloy |
End Caps | 2 End caps, one with wire hole, one without |
Brackets | 2 pieces |
Installation | Embedded |
Lead Time | 5-7 days |
Package | 8mm Thick Carton Packaging |
Hot Sales
FAQ
Q1: What is the length in stock ?
A1: 2/3meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3: What is the max length of the LED profile ?
A3: Max in 3meters for air shipment, 5meters for sea shipment
Q4: Can I join them together to make one continuous length?
A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)
Welcome ODM Customized LED Aluminum Profile
