Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized

Product Details

Place of Origin: Shenzhen, China

Brand Name: OFLY

Certification: CE, ROHS

Model Number: YD-1102

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: Negotiable

Packaging Details: 8mm Thick Carton Packaging

Delivery Time: 5-7 Days

Payment Terms: T/T

Supply Ability: 2000000 Meters\Year

Get Best Price
Highlight:

Surface Mounted Casing Aluminium LED Strip

,

16*6mm Casing Aluminium LED Strip

,

Anodized LED Channel Track

Item No.:
YD-1102
Size:
16*6mm
Material:
6063 T5 Aluminium Alloy
Cover:
Milky/Clear/Frosted/Opal
Length:
1m,2m,3m,4m
Certification:
CE, ROHS
Item No.:
YD-1102
Size:
16*6mm
Material:
6063 T5 Aluminium Alloy
Cover:
Milky/Clear/Frosted/Opal
Length:
1m,2m,3m,4m
Certification:
CE, ROHS
Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized

Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized



Surface Mounted LED Profile, LED Aluminum Profile



1. FEATURES AND APPLICATIONS:
1. Thick aluminum with high intensity.
2. The aluminum has thick oxide layer(12μm),The thicker the oxide layer, the more insulated the aluminum bath and the stronger the oxidation resistance.
3. High purity of aluminum,good heat dissipation
4. PC cover materials from Japan,Germany,PMMA cover materials from France.Better transmittance.And the covers are not easy become yellowing.

Cabinet;Wardrobe,Showcase;Shelves,Office scene;Entertainment scene,Decoration,Etc



Item NO. YD-1102
Size 16mm*6mm
Length 1m, 2m, 3m, 4m
Customized Length Available
PCB Width Inside ≤12.5mm
PC Cover Milky/Clear/Opal/Semi-clear
Finished Anodized
Material 6063 T5 aluminum alloy
End Caps 2 End caps, one with wire hole, one without
Brackets 2 pieces
Installation Surface Mounted
Lead Time 5-7 days
Package 8mm Thick Carton Packaging

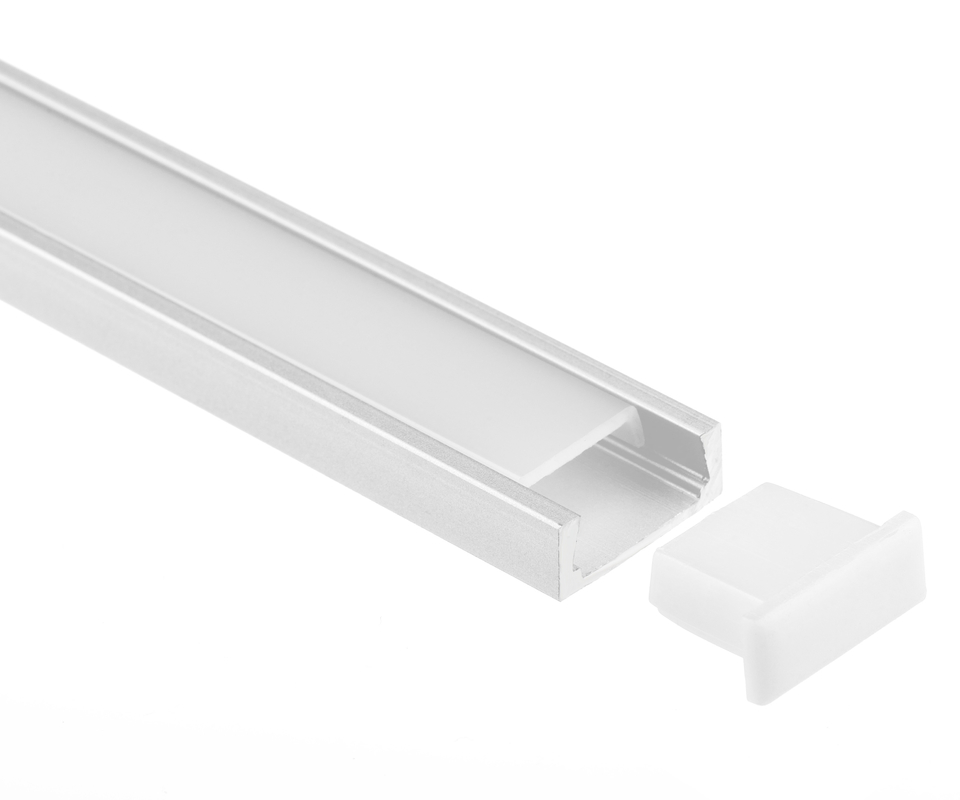

Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized 0

Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized 1

Hot Sales

Surface Mounted Casing Aluminium LED Strip Channel Track 16*6mm Anodized 2

FAQ
Q1: What is the length in stock ?
A1: 2/3meters

Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity

Q3: What is the max length of the LED profile ?
A3: Max in 3meters for air shipment, 5meters for sea shipment

Q4: Can I join them together to make one continuous length?
A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)

Q5: What is the material of diffuser ?
A5: PC or PMMA

Q6: Can you company help to assembly the led strip and driver ?
A6: Yes, we provide one-stop assembly service.

Q7: Can we have the profile in other color ?
A7: Yes, power coating and anodizing available
